1220mm wall panels
CREATEKING

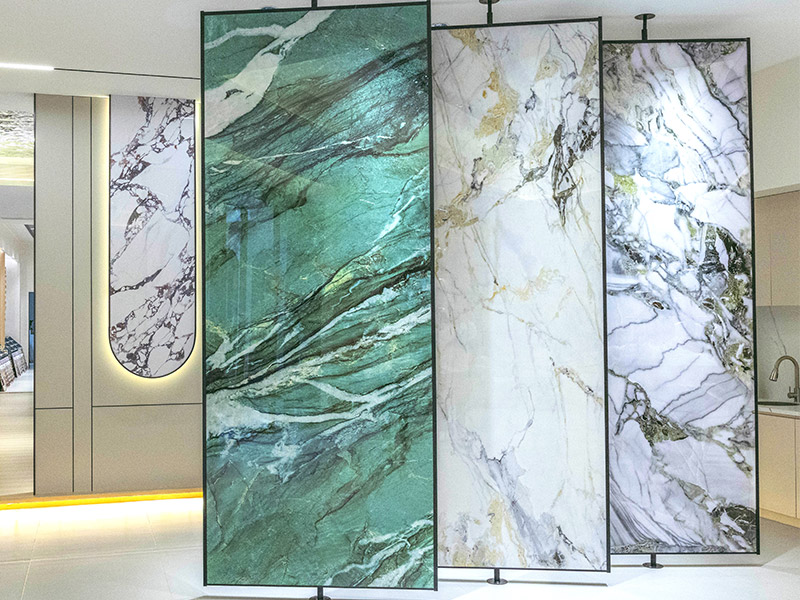

Carbon crystal wall panel is an indoor integrated wall panel, an iterative product of traditional bamboo fiber panels. It is outstanding in product hardness, surface scratch resistance, decorativeness, etc. It adopts advanced co-extrusion technology, and both the upper and lower surfaces are hard, which can better protect the core material. It is a new type of environmentally friendly wall panel.
| Product Name | Carbon Crystal Wall Panels |
| Product Number | 1220mm wide wall panels |
| Material | WPC / PVC |
| Product Size | 2800/3000*1200*5/8/9mm |
| Color Customization | Water-based PVC film / PP anti-scratch film / PET-G high-gloss film / Wood grain series / Marble series / Fabric series / Leather series / Skin sensation series / Diatom mud grain series |

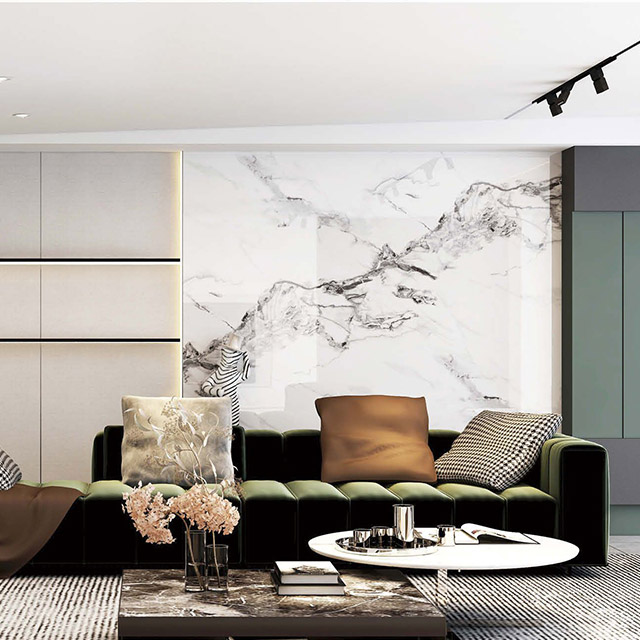

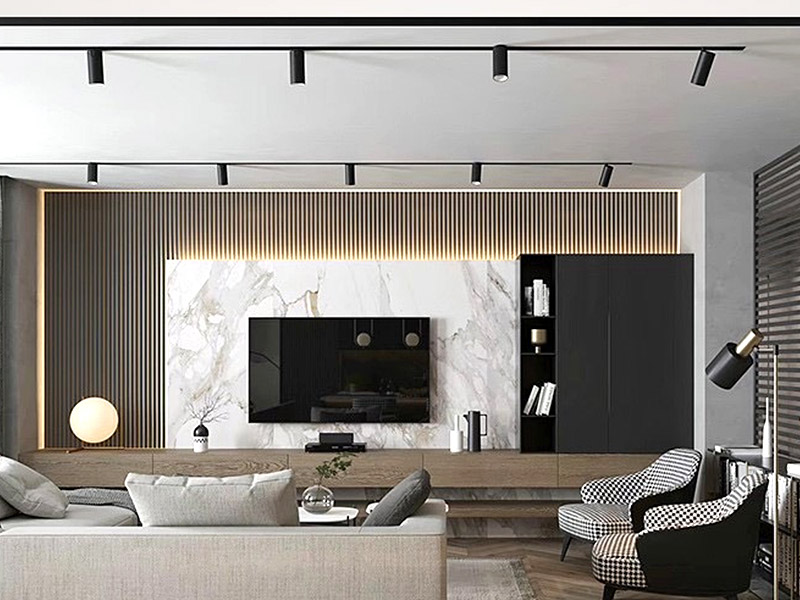

| Application | Wall / Ceiling / Furniture surface decoration |
| Installation | Glue or wooden bracket installation |
| Service life | 20-50 years |
Carbon crystal wall panel is a fashionable and environmentally friendly materials, which is composed of a variety of materials. It has excellent performance, such as physical, mechanical, chemical, and thermal properties, as follows:
1. Physical properties

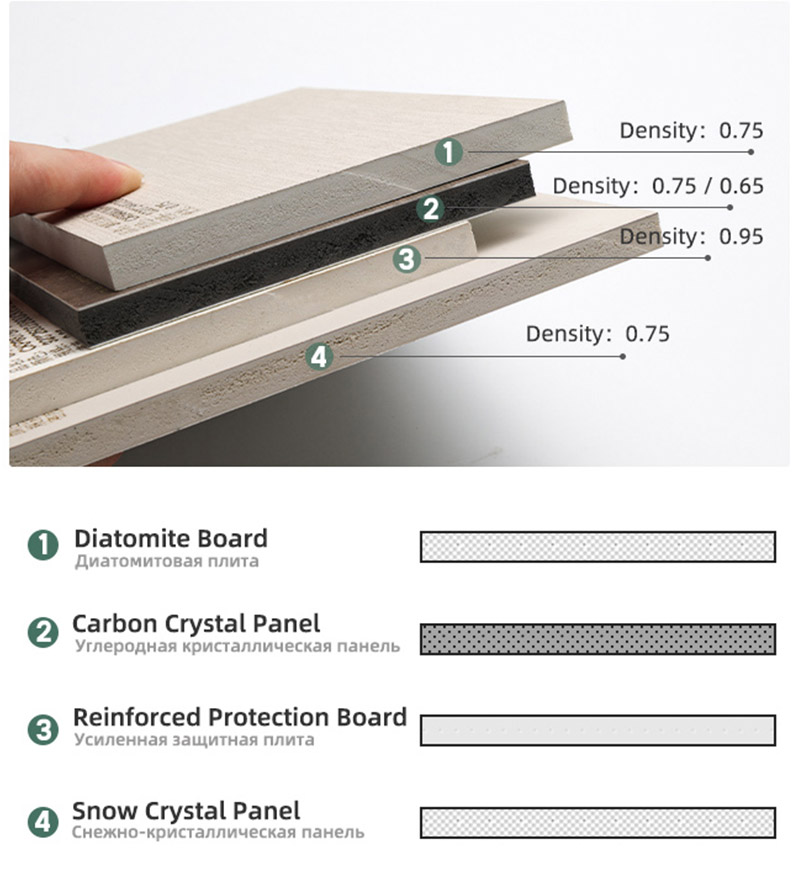

The density of carbon crystal wall panels is usually between 0.75~0.95g/cm³, which is lower than that of metal or stone, lighter in weight, and more convenient to install and transport.
Using unique waterproof materials, multi-layer structure, smooth surface, and low water absorption, it ensures that it is not easy to expand or deform in a humid indoor environment.
In addition, the anti-UV agent is added during the production process to enhance its anti-ultraviolet performance and ensure that it does not easily fade or age.
The solid structure gives it better sound insulation performance, which can isolate the influence of external noise and create a comfortable and quiet environment for the indoor living room or bedroom.
2. Mechanical properties
Carbon crystal wall panel uses high-density core material, combined with advanced processing technology, and their bending strength reaches 25~40MPa, which is higher than traditional PVC or MDF materials.
Secondly, the multi-layer structure also makes it highly impact-resistant. After testing, its impact resistance can reach 30~50J/cm².
Its surface can be affixed with anti-scratch PVC film, which has strong scratch resistance.
Carbon crystal wallboard is precisely processed, has good stability, and is not easily deformed due to changes in temperature or humidity.
3. Chemical resistance
It is an upgraded product of bamboo fiber wallboard, and it also has excellent corrosion resistance and performs well in some weak acid and weak alkali environments indoors.
Carbon crystal wall panel uses environmentally friendly materials, meets E0 environmental standards, and is suitable for home and commercial space applications.
The combination of fiber or stone powder material and plastic makes it difficult to breed mold in a humid environment, ensuring the beauty of wall decoration.
4. Thermal performance
Compared with metal wall panels, carbon crystal wall panels have a lower thermal conductivity of about 0.14~0.20W/m·K.
In addition, carbon crystal wall panels are not easily affected by environmental changes and can still maintain good performance in high indoor temperature environments. They can usually be used in kitchens or bathrooms without deformation, softening, or falling off.

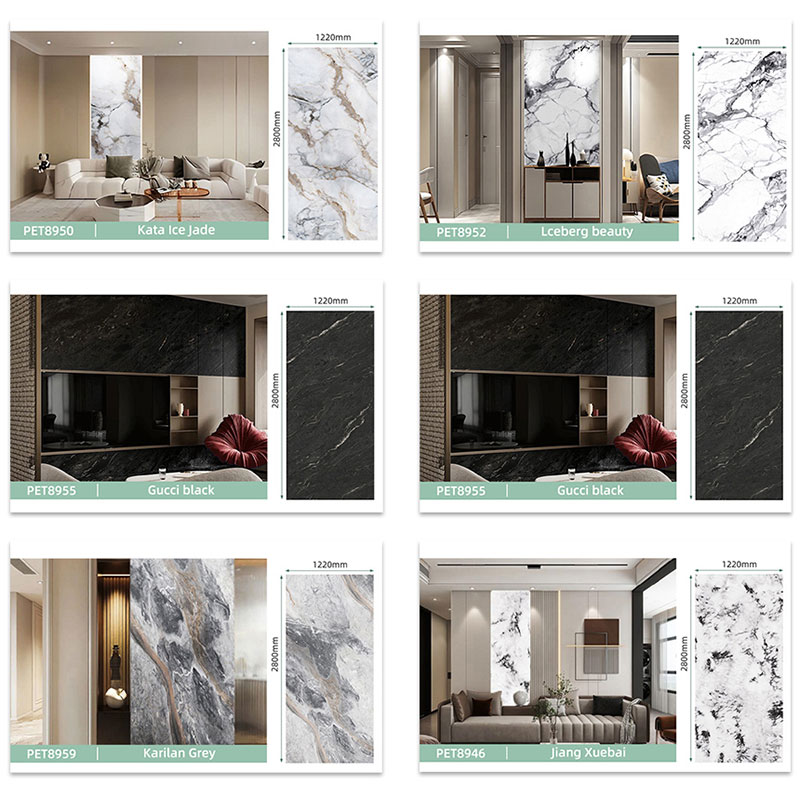

Carbon Crystal Wall Panels have a variety of finish options, and various surfaces can be customized according to project requirements. Generally, they include the following color series:
Water-based PVC film
PP anti-scratch film
PET-G high-gloss film

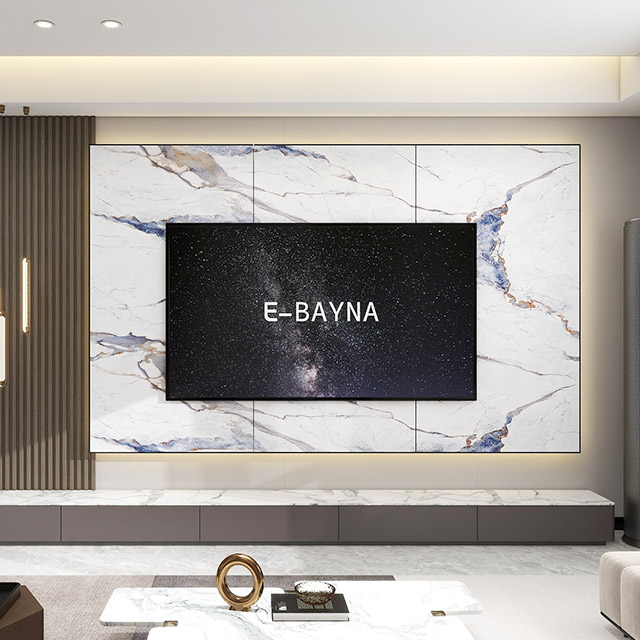

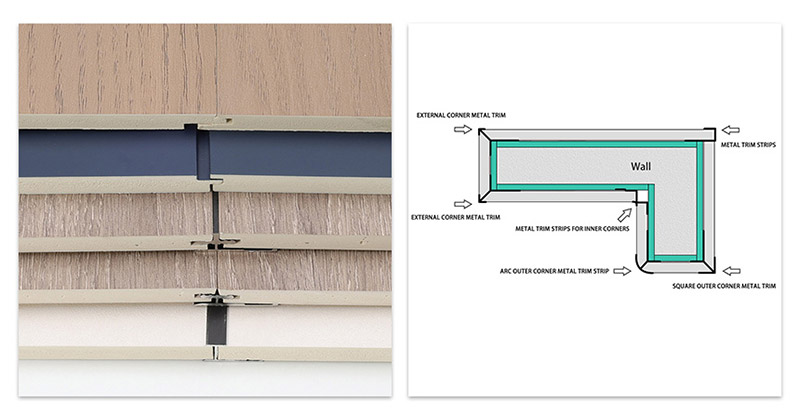

Carbon crystal wall panels can be flexibly customized, such as opening holes, slotting, bending, etc. The wall surface can be designed into a mother-and-child groove, and directly spliced during installation to form an almost seamless surface.
In addition, aluminum alloy side strips can be used for connection to enhance its decorative effect.

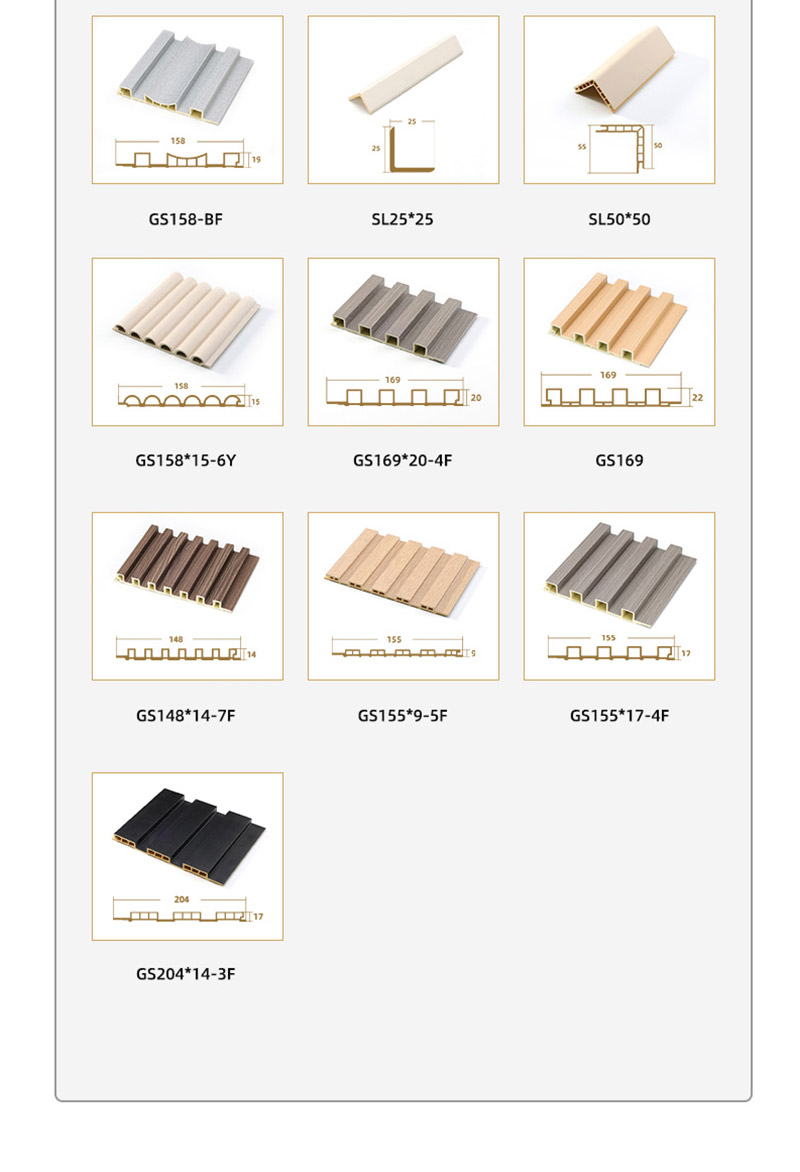

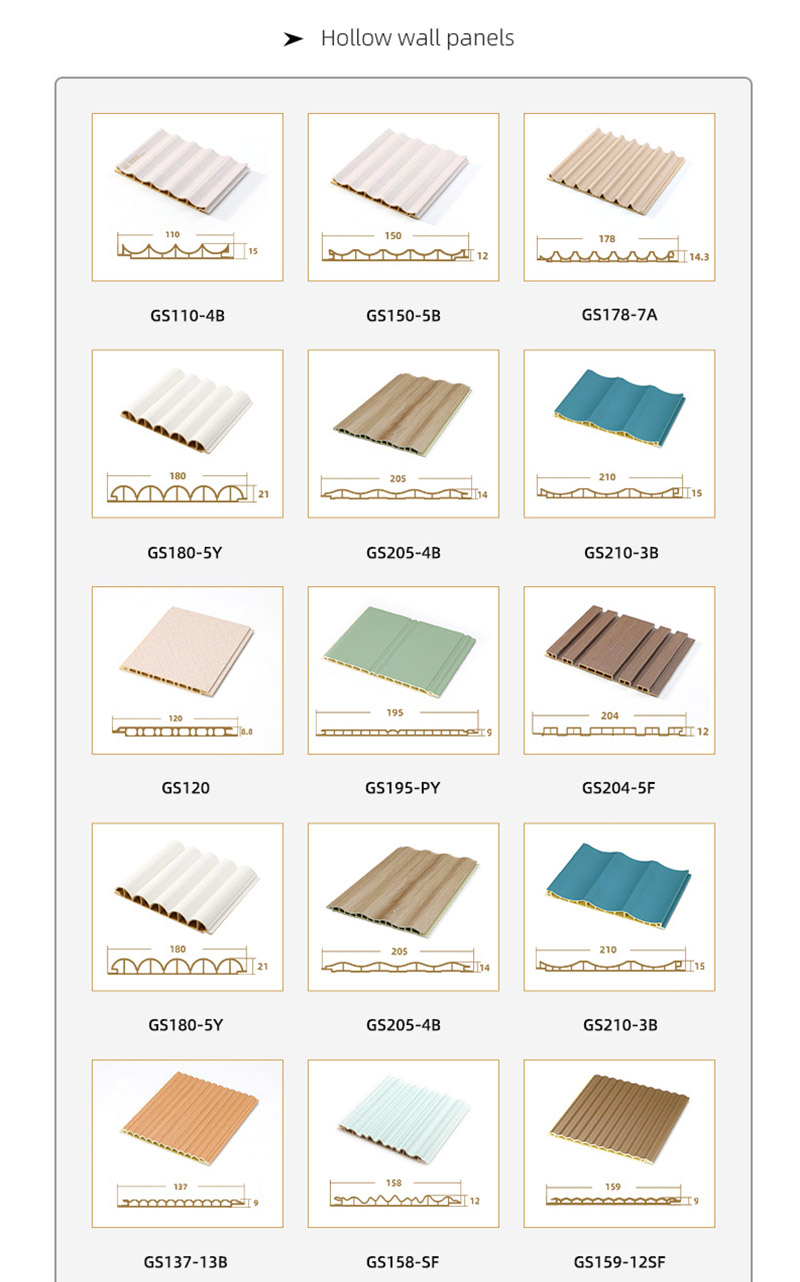

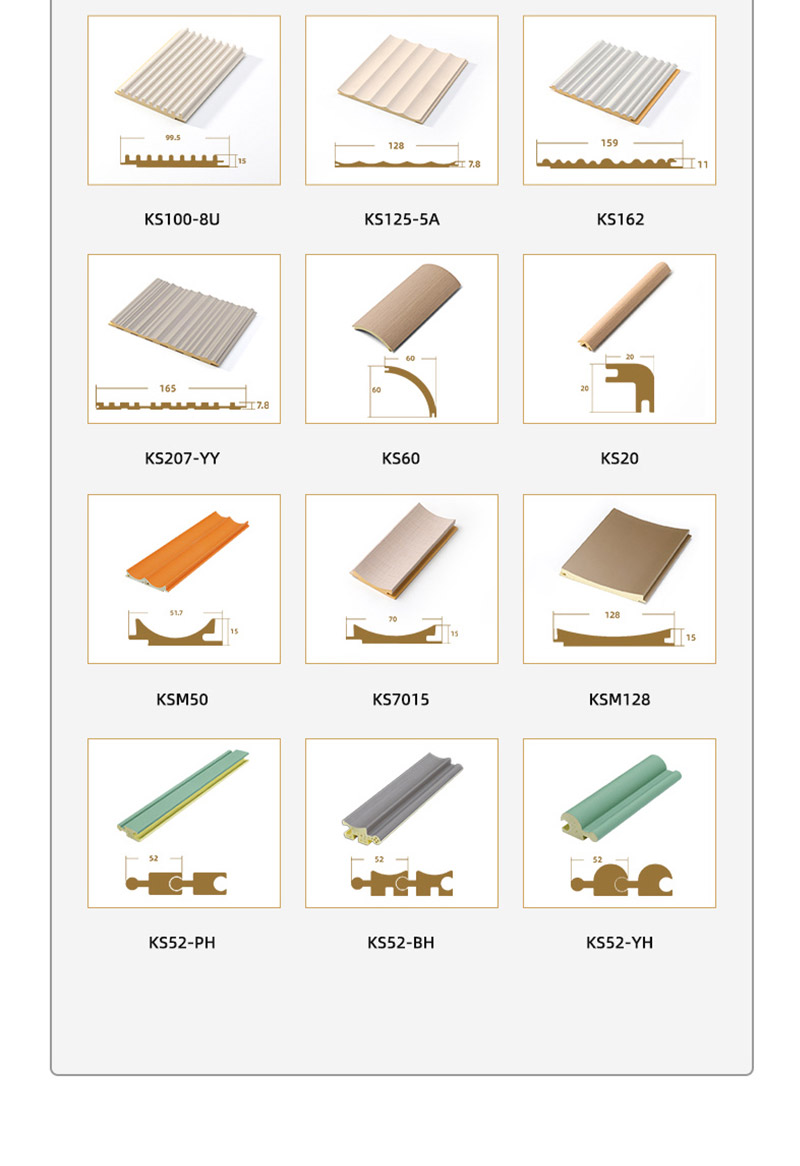

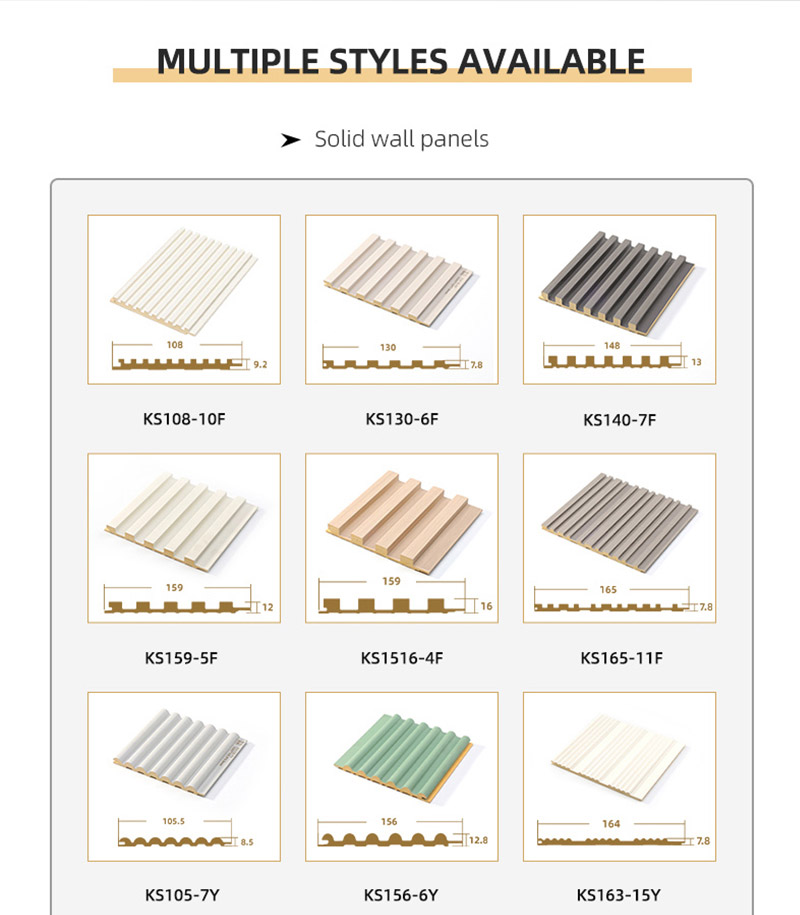

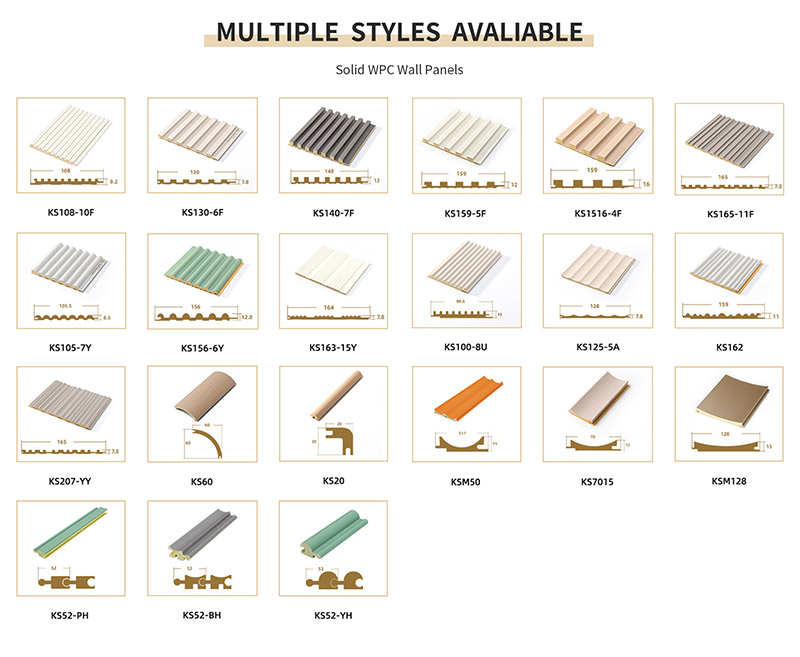

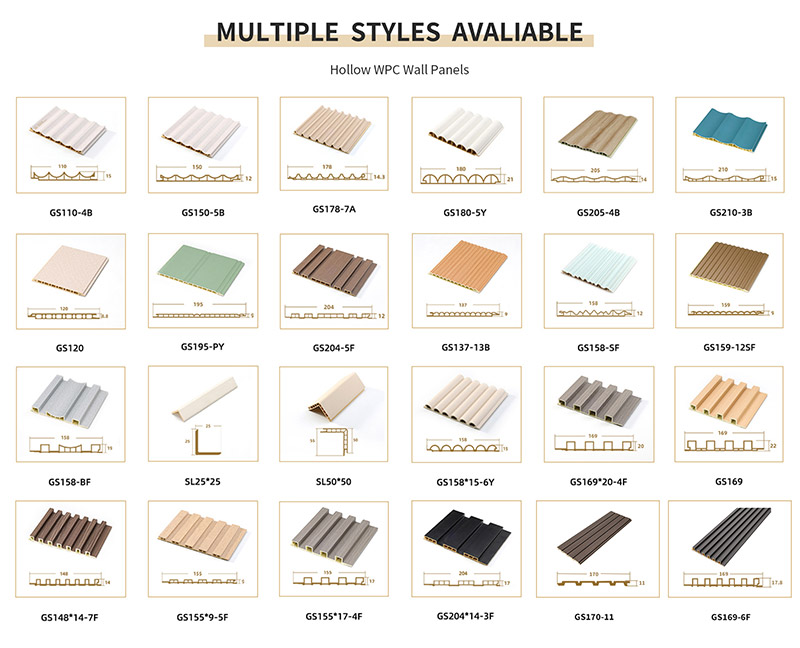

CREATEKING is a professional interior decoration wall panel supplier, which means you can find various wall panel types here. From plastic wood grille, and bamboo fiber wall panels to various large wall panels of 1220mm. We can provide one-stop interior decoration and supporting solutions according to your decoration project. Contact us now to get the best quotation.
