1220mm wall panels
CREATEKING

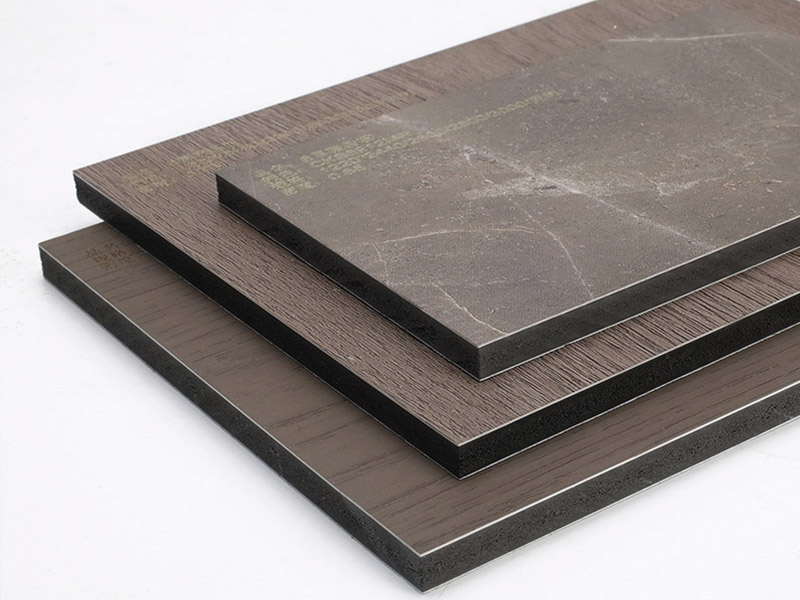

Carbon crystal panels are a commonly used material in engineering wall decoration. Like traditional wall decoration materials, they mainly play a protective and decorative role on the wall. From its development history, carbon crystal panels are an upgraded product based on wood veneer wall panels with better overall hardness, a wear-resistant surface, fireproof properties, and environmental friendliness.
| Product Name | Carbon crystal panels |
| Product Number | 1220mm width wall panels |
| Material | WPC / PVC |
| Length | 2800mm or 3000mm |
| Width | 1220mm |
| Thickness | 5mm or 8mm |
| Density | 0.65g/cm³ or 0.75g/cm³ |
| Color Customization | Water-based PVC film / PP anti-scratch film / PET-G high-gloss film / Wood grain series / Marble series / Fabric series / Leather series / Skin sensation series / Diatom mud grain series |
| Application | Wall / Ceiling / Furniture surface decoration |
| Installation | Glue or wooden bracket installation |
| Service life | 20-50 years |
Compared with bamboo fiber wall panels or wood veneer wall panels, carbon crystal wall panels have more outstanding product characteristics, including:
1. Product density
Carbon crystal wall panels are made of environmentally friendly composite materials, and their core layer density is usually 0.65g/cm³ or 0.75g/cm³, or even higher, so their impact resistance will be stronger.
2. PUR glue hot pasting process
The PUR glue hot pasting process is adopted. Its surface film layer has higher adhesion to the substrate, and it is not easy to have degumming and bubbling problems, which is more environmentally friendly.
3. Surface decorative film
Different types of surface films can be selected according to project requirements or personal preferences.
Water-based PVC film is more environmentally friendly and flexible, suitable for home or interior decoration. PP anti-scratch film has excellent scratch resistance and UV resistance, suitable for scenes that require high-frequency use. PET-G high-gloss film, usually with high gloss and transparency, is suitable for high-end home environments.
In addition, the thickness of the surface decorative film usually has different thicknesses such as 14 threads, 16 threads, 18 threads, 28 threads, 36 threads, and 42 threads. The smaller the value, the thinner the surface film, and the larger the value, the higher the thickness and the better the quality.
4. Product thickness
Generally, the thickness of carbon crystal wall panels is 5mm, 8mm, and 9mm. The thicker the thickness, the higher the hardness and the better the impact resistance.
5. Installation
Since the area of carbon crystal wall panels is usually large, their installation is more convenient, which can effectively reduce the number of joints and make the overall decorative effect more beautiful.
Secondly, the splicing of the wall usually requires metal decorative lines, such as metal transition strips, inner corner strips, outer corner strips, metal edging strips, etc.

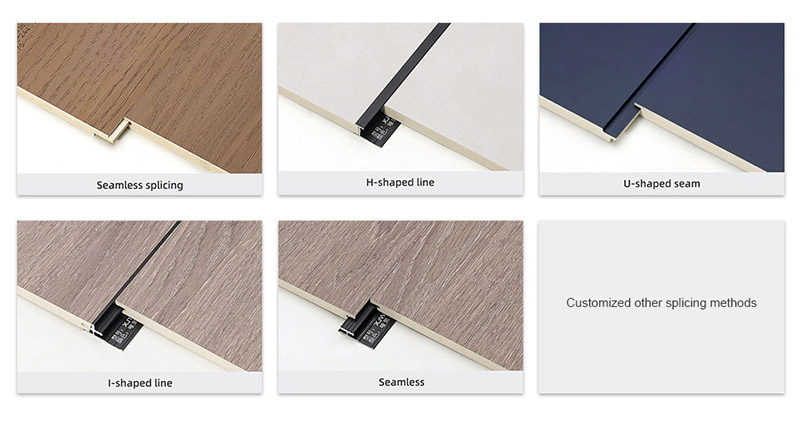

In addition, the wall panels can also be grooved, and the mortise and tenon design makes splicing more convenient, and there is almost no gap after splicing. Or make U-shaped seams or V-shaped seams according to your needs.
6. Applicability
Carbon crystal panels have many applications and are usually used in engineering projects. They do not have high requirements for the base surface of the wall on which they are installed. They can be installed on either rough walls or putty walls.
Carbon crystal wall panels can adopt mortise and tenon structures, and two wall panels can achieve seamless, U-shaped, or V-shaped connection effects.
Or without grooving, aluminum alloy transition strips are used to connect the wall panels, inner or outer corner trimming strips are used at the corners, and metal edging strips are used to close the edges of the wall panels.
